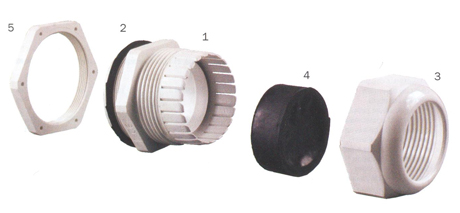

Фото                   Чертеж

Тип

Степень защиты

Размеры, мм

Диаметр кабеля

Цвет

Артикул

М

D

F

С

S

d1

m

PGL11
PGL 13,5
PGL16
PGL 21
PGL 29
PGL 36
PGL 42
PGL 48

P54
P54
P54
P54
IP54
IP54
IP54
|РЬ4

18,0
20.0
22,0
28.0
37.0
46,0
54,0
59.0

8,0
10,0
12,0
16,0
25,0
32.0
40,0
44,0

7,0
8,0
10,0
10,0
9,0
12,0
9.0
12,0

34,0
35,0
40,0
45,0
50,0
56,0
63,0
63,0

24,0
27,0
30,0
35,6
46,0
60,0
65,0
70.0

26.0
29,0
33.0
38.5
50.0
66,0
73,0
77,0

5,0
6,0
6,0
7,0
7,0
8.0
8,0
8.0

5 8
6-10
10-12
13-16
18-25
22-32
33-40
34-44

серый RAL7035
серый RAL7035
серый RAL7035
серый RAL7035
серый RAL7035
серый RAL7035
серый RAL7035
серый RAL7035

YSA30-08-11-54-K41
YSA3O-10-13-54-K41
YSA30-12-16-54-K41
YSA30-16-21-54-K41
YSA30-25-29-54-K41
YSA30-32-36-54-K41
YSA30-40-42-54-K41
YSA30-44-48-54-K41

PG7
PG9
PG 11
PG 13,5
PG 16
PG 21
PG 29
PG 36
PG 42
PG48

IP54
P54
IP54
IP54
IP54
IP54
IP54
IP54
IP54
IP54

12,0
15,0
18,0
20.0
22,0
28,0
36.0
47.0
54.0
59,0

8,0
8,0
7,0
7,5
9,0
11,0
10,0
13,0
12.0
13,0

7,0
9,0
11,0
12,0
13,0
19,0
25,0
32,0
38,0
45,0

31.0
33.0
36.0
38,0
42,0
51,0
52,0
65,0
66,0
66.0

19.0
22.0
24.0
27,0
30,0
35,5
46,0
58,0
64,5
70,0

21,0
24,0
26,0
29,0
33.0
38.5
50,0
65,0
72,0
78,0

5,0
5,0
5,0
6,5
6.0
7.0
6.5
7,5
8,0
8,0

2,5-7
4 9
5-11
5-12
6 13
9 19
20-25
23-32
32-38
38-45

серый RAL7035
серый RAL7035
серый RAL7035
серый RAL7035
серый RAL7035
серый RAL7035
серый RAL7035
серый RAL7035
серый RAL7035
серый RAL7035

YSA20-06-07-54-K41
YSA20-08-09-54-K41
YSA20-10-11-54-K41
YSA20-12-13-54-K41
YSA20-14-16-54-K41
YSA20-18-21-54-K41
YSA20-25-29-54-K41
YSA20-32-36-54-K41
YSA20-40-42-54-K41
YSA20-44-48-54-K41
